ROV DETAIL
- Dimensions & Weight: With dimensions measuring 1900mm in length, 1200mm in width, and 1100mm in height, this robot presents a more substantial physical presence, weighing in at 400kg. This increased size and weight are reflective of its enhanced capabilities and extended operational scope.
- Material Structure: Similar to its smaller counterpart, the main body of this larger robot is also constructed from durable stainless steel, featuring a robust square tube structure. What sets it apart is the float material, utilizing a pressure-resistant composite material with glass microspheres designed to withstand depths of up to 100 meters. This material choice highlights the robot's adaptability to a wider range of maritime conditions.

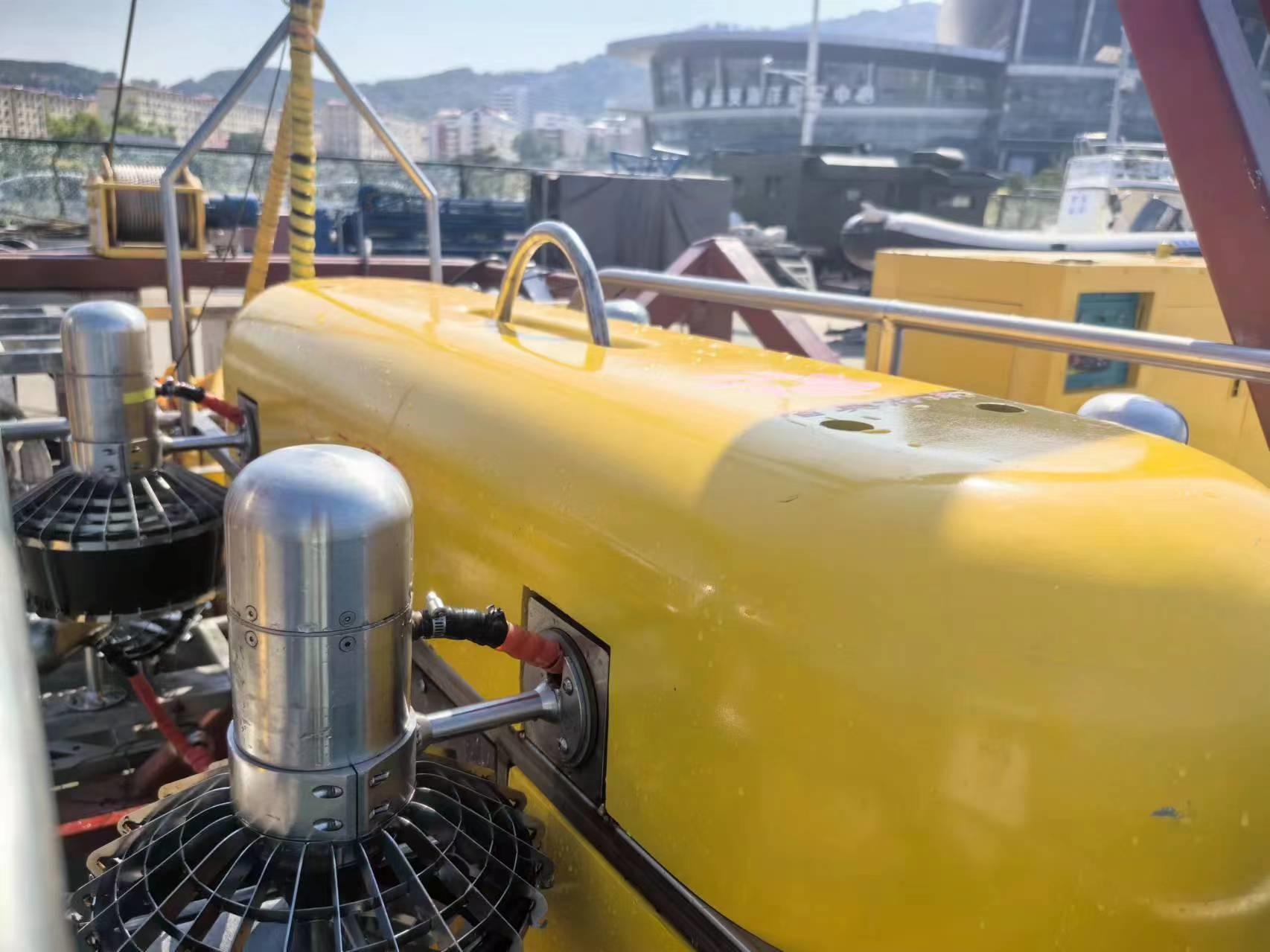

- Propellers: This sophisticated cleaning machine is equipped with a formidable propulsion system consisting of 8 brushless thrusters. These thrusters are divided into 4 horizontal thrusters and 4 vertical lifting thrusters, providing superior manoeuvrability and precise control in both lateral and vertical movements.
- ***Camera Parameters***: The robot is fitted with cutting-edge camera technology, featuring a main lens with a 3 million 4X autofocus high-definition network camera. The optical synchronous focusing ensures clear imaging throughout the zoom range, and its broad field of view spans from 134.9° (near focus) to 34.1° (far focus). Additionally, three auxiliary lenses, including 2 million high-definition network wide-angle cameras, offer comprehensive coverage and detailed visual information. We can get very clear photo.
Illumination: To illuminate its working environment, the robot is equipped with five 25W LED lights, boasting a total brightness of 4000 lumens. This powerful illumination ensures that the cameras capture clear and detailed images, even in low-light conditions encountered in the depths.
Depth Rating: With a depth rating of 30m, this robot extends its operational capabilities to deeper underwater environments, making it suitable for a broader range of maritime applications.
Speed and Steering: The robot exhibits impressive speed capabilities, with a horizontal speed of 2.0 knots and a vertical speed of 0.5 knots. Its 360° steering ability ensures efficient navigation and targeted cleaning.
- Depth Sensor: The depth sensor is not only compatible with a temperature sensor but also boasts remarkable accuracy at 0.25%FS. The depth resolution of 1cm and temperature resolution of 0.125℃ contribute to the robot's precise control and monitoring capabilities.

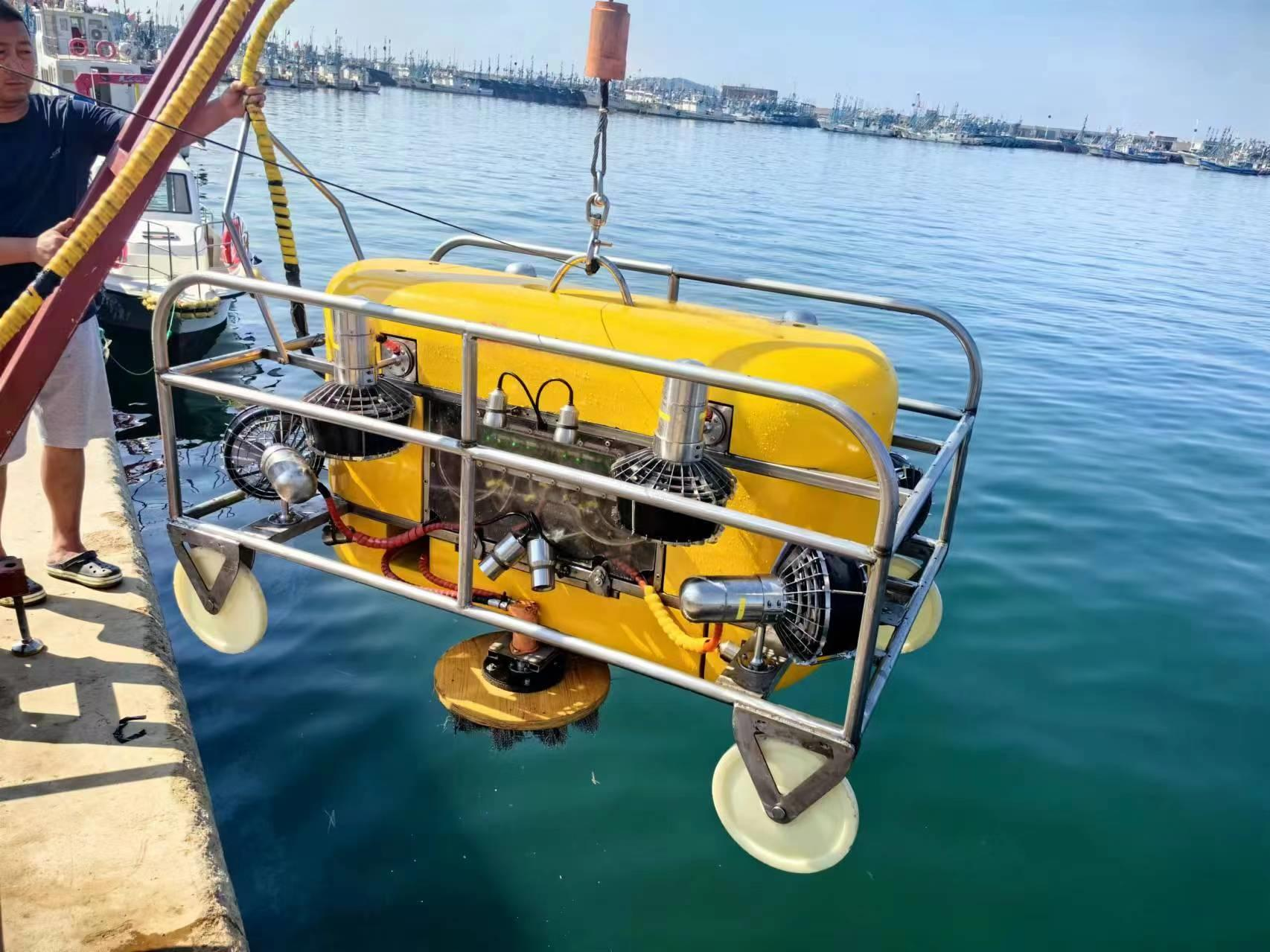

- Cleaning Device: This advanced cleaning robot is equipped with two cleaning discs with nylon brushes, each boasting a diameter of 340mm. The adjustable rotation speed can adapt to different hull fouling conditions.
- Automatic depth control and automatic heading control further streamline the operation of the robot, ensuring optimal performance in diverse underwater conditions
- The cutting-edge cleaning robot employs an entirely electric architecture, ensuring efficiency and environmental friendliness in its maritime surface maintenance operations..
- We are advanced thruster technology, smart navigation, and comprehensive observation capabilities sets it apart as a versatile and indispensable tool for preserving the integrity and aesthetics of ships' surfaces in an environmentally conscious manner.
- In addition to its powerful propulsion system, the robot is equipped with state-of-the-art cameras and lighting units strategically positioned at the front and rear. These enhancements serve a dual purpose: first, to offer a comprehensive view of the underwater working environment, facilitating real-time monitoring and navigation; second, to illuminate the cleaned surface effectively, ensuring that no detail is overlooked during the cleaning process.

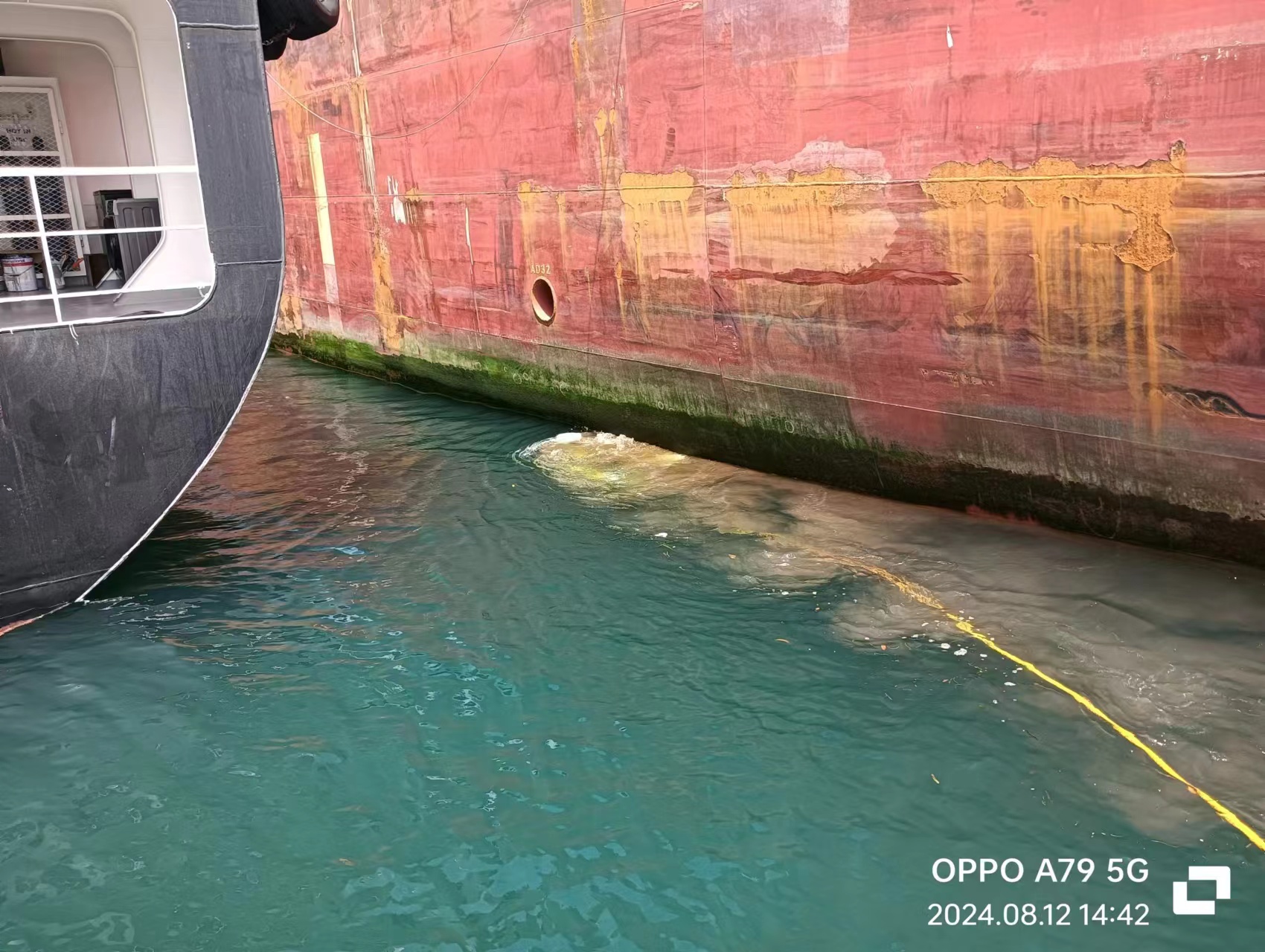

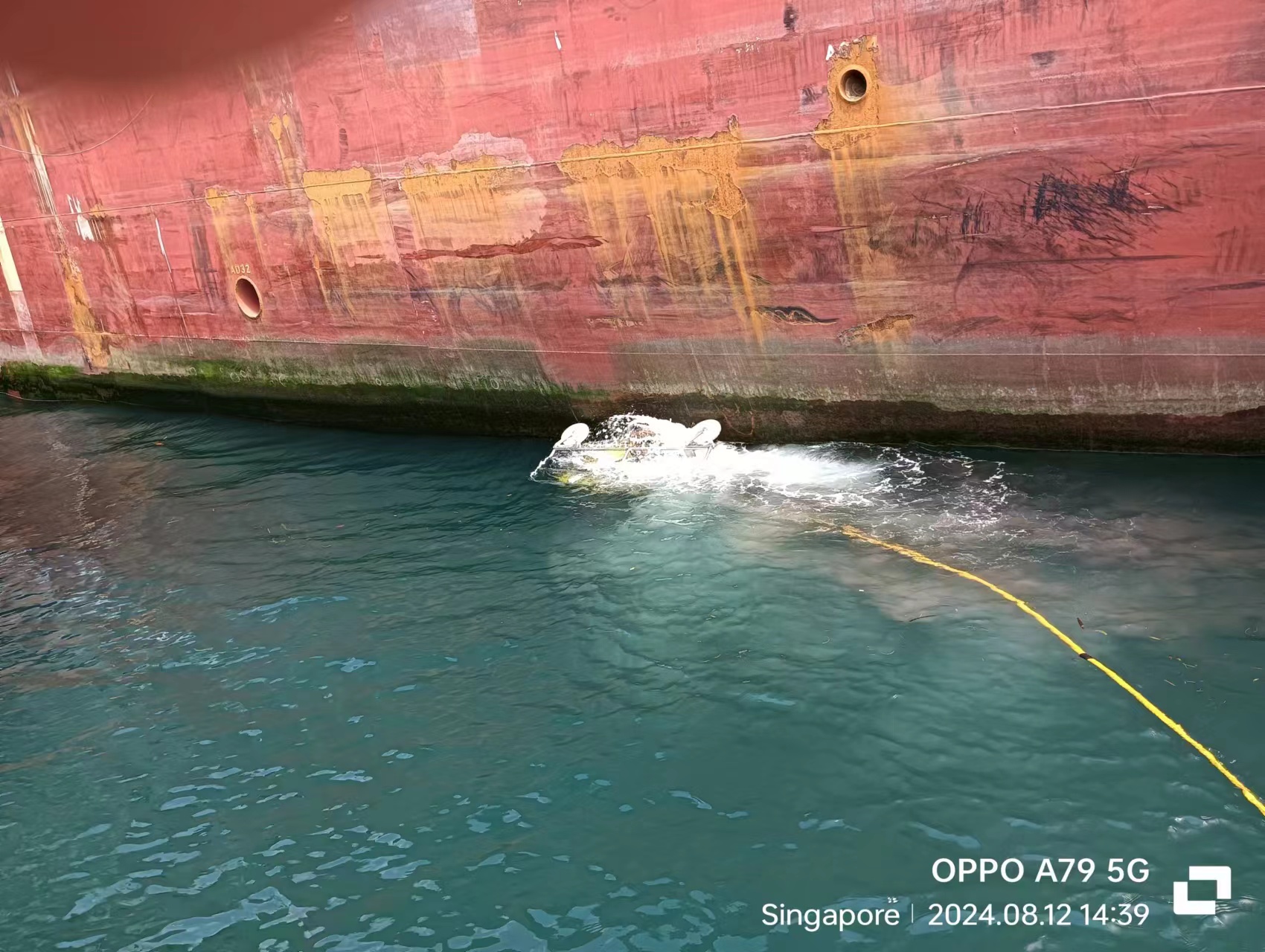

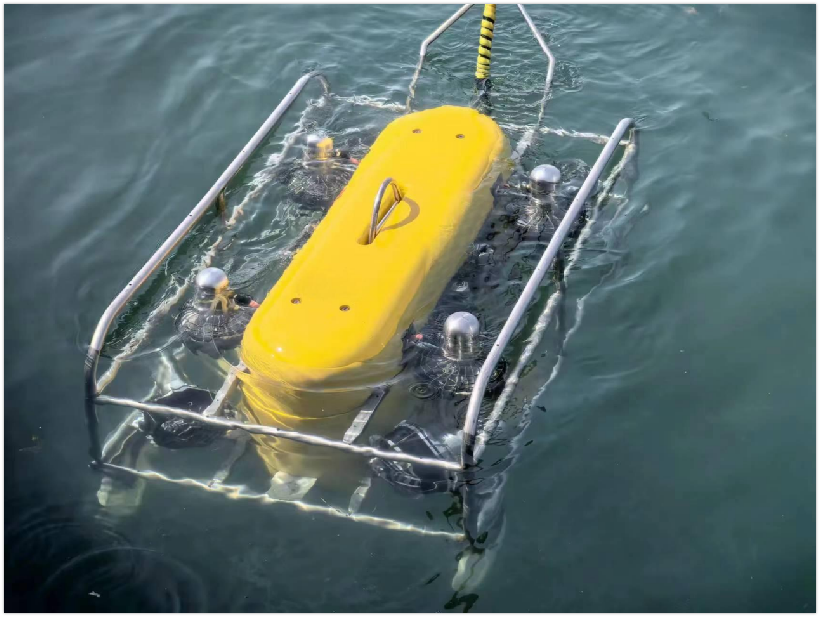

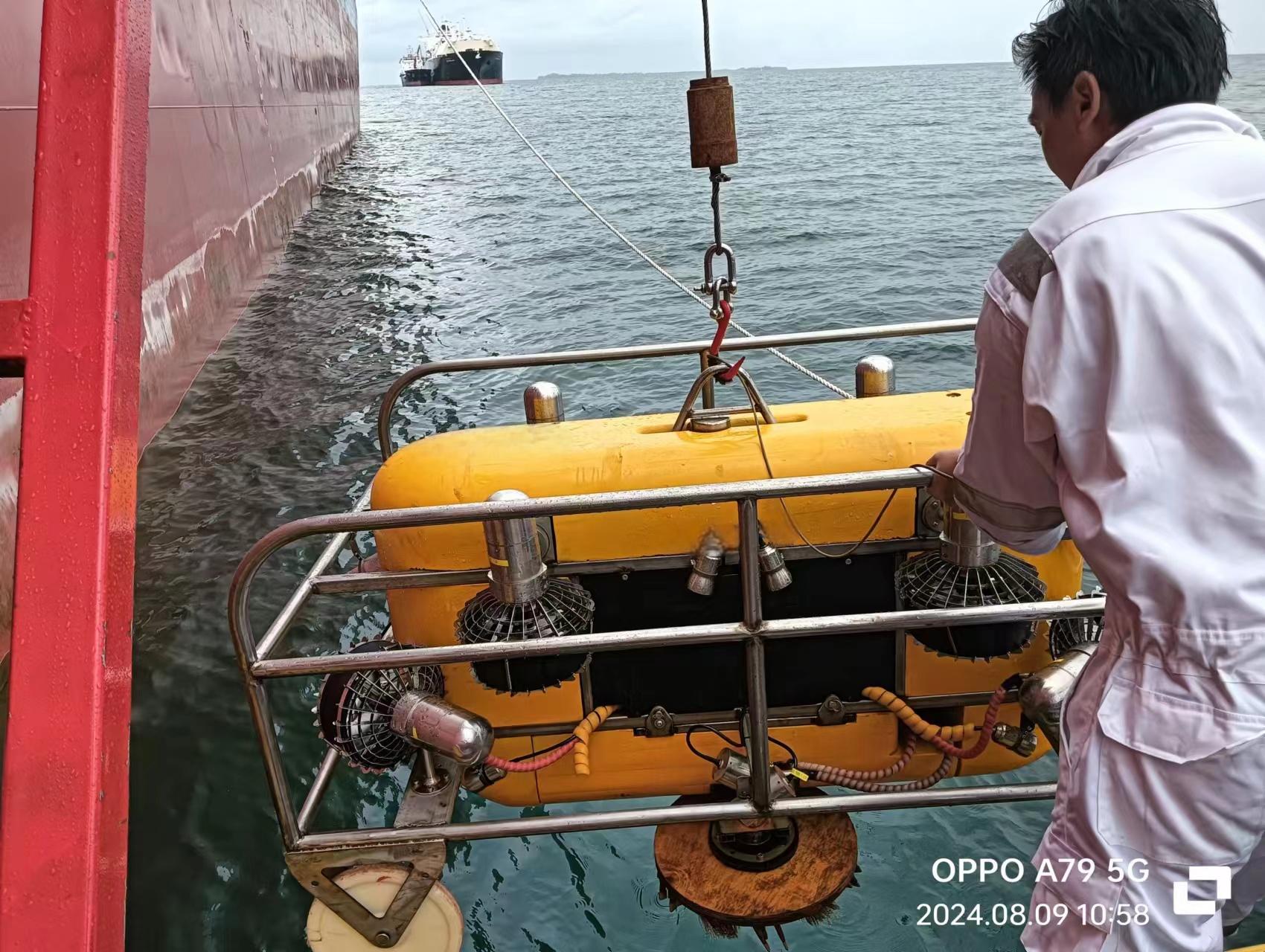

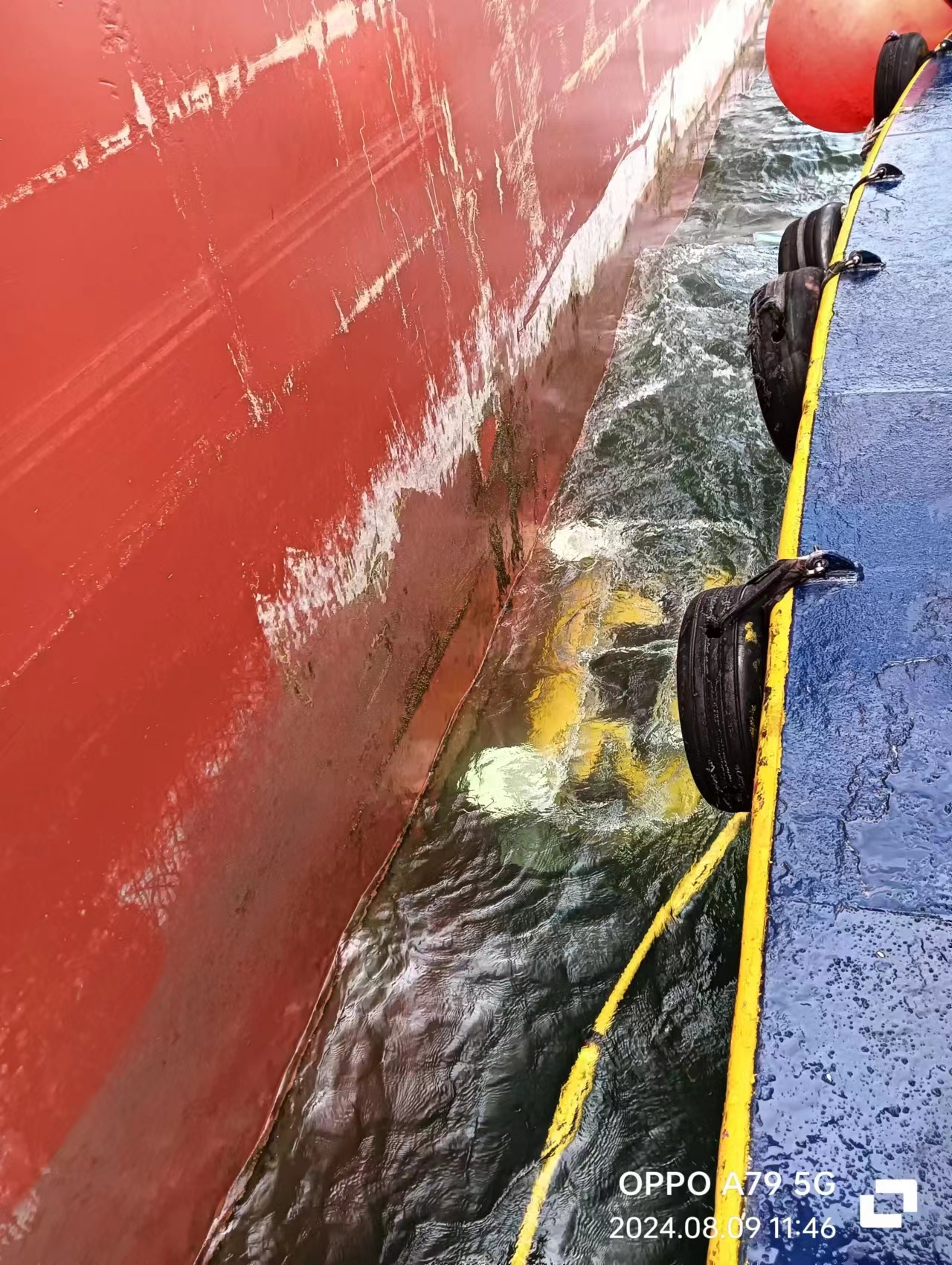

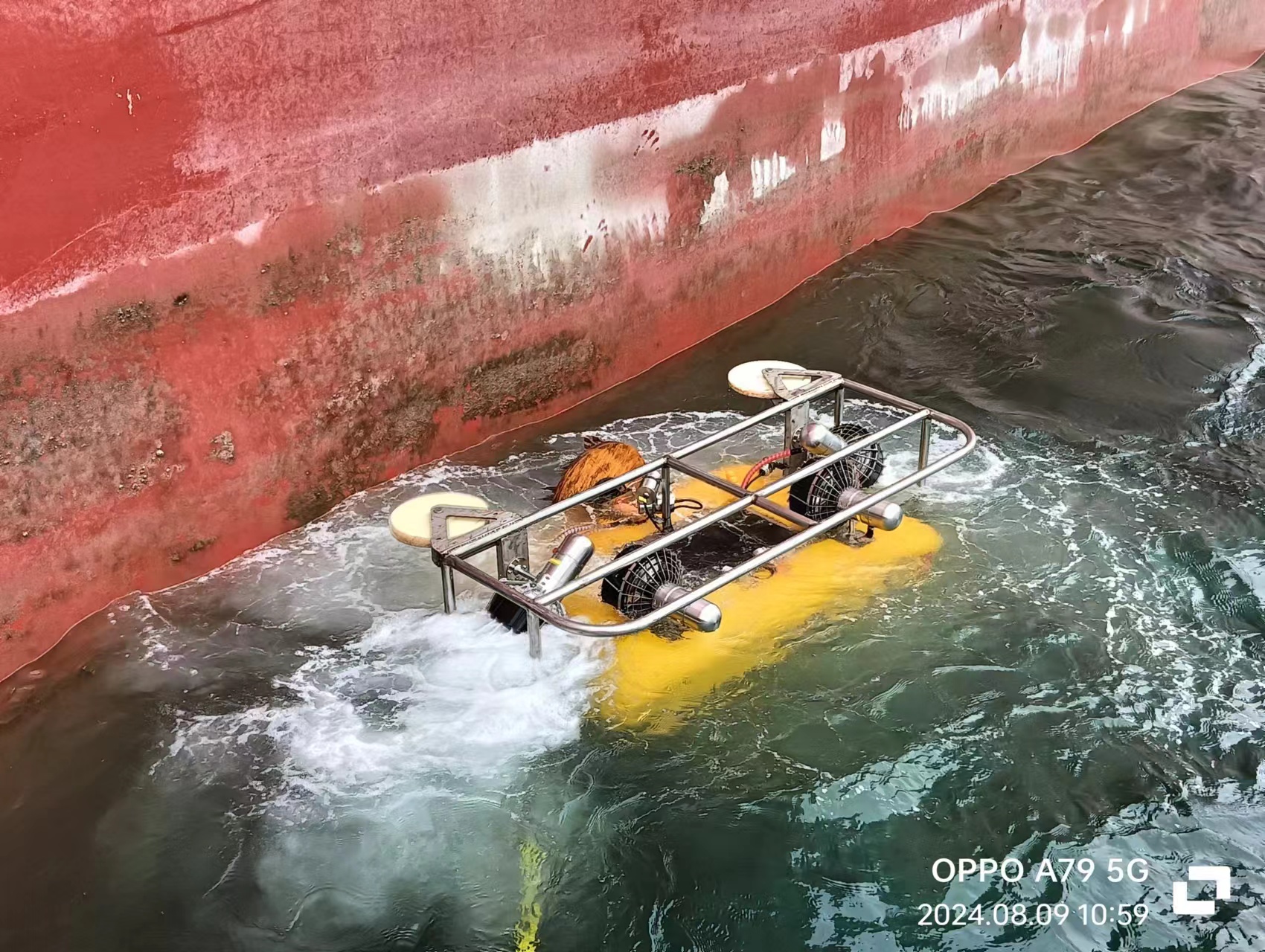

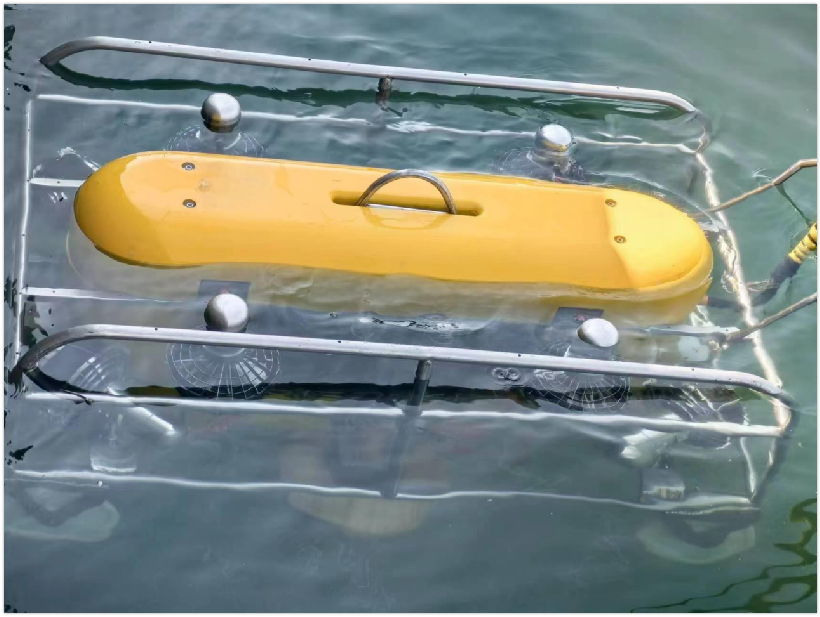

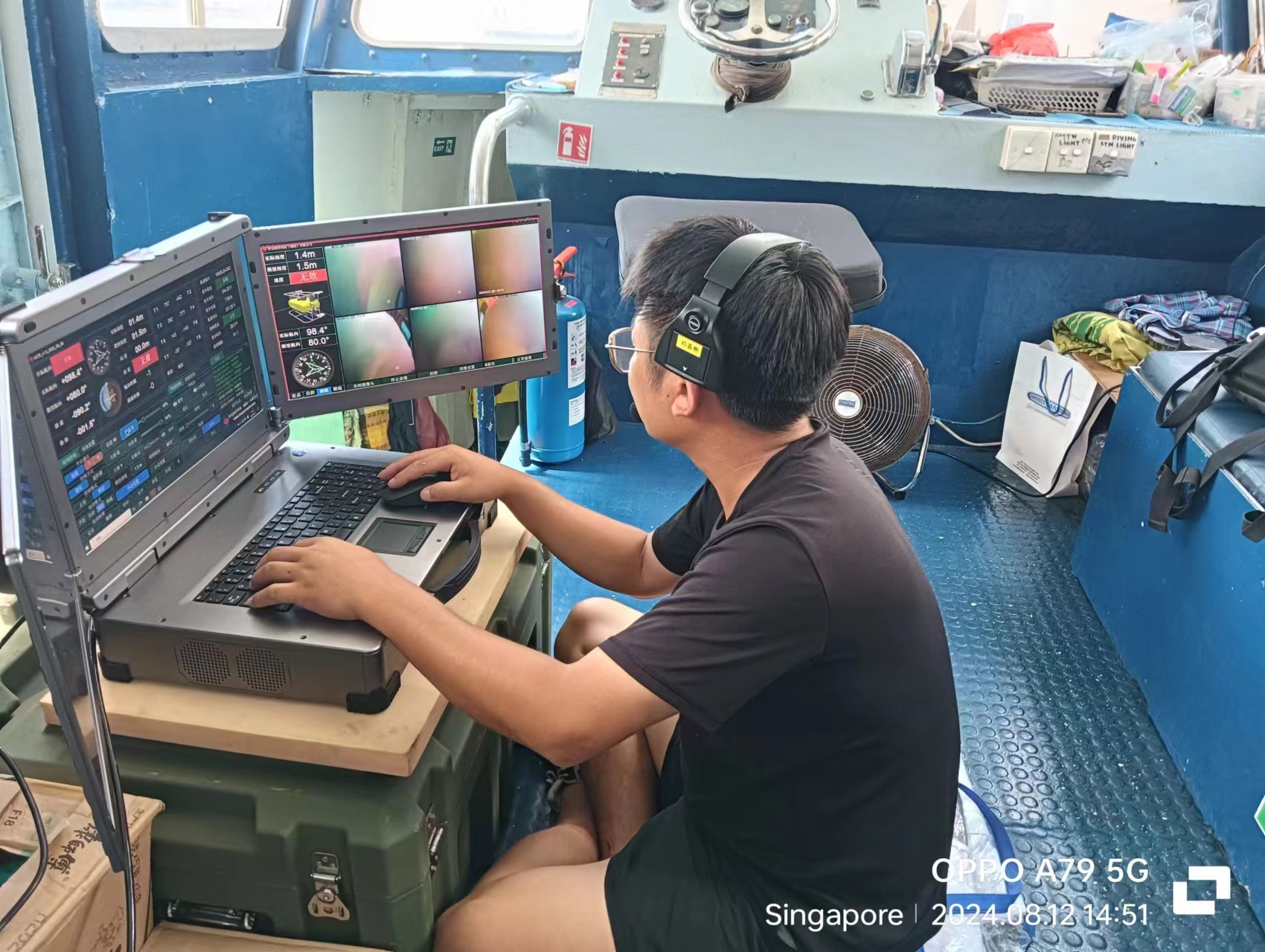

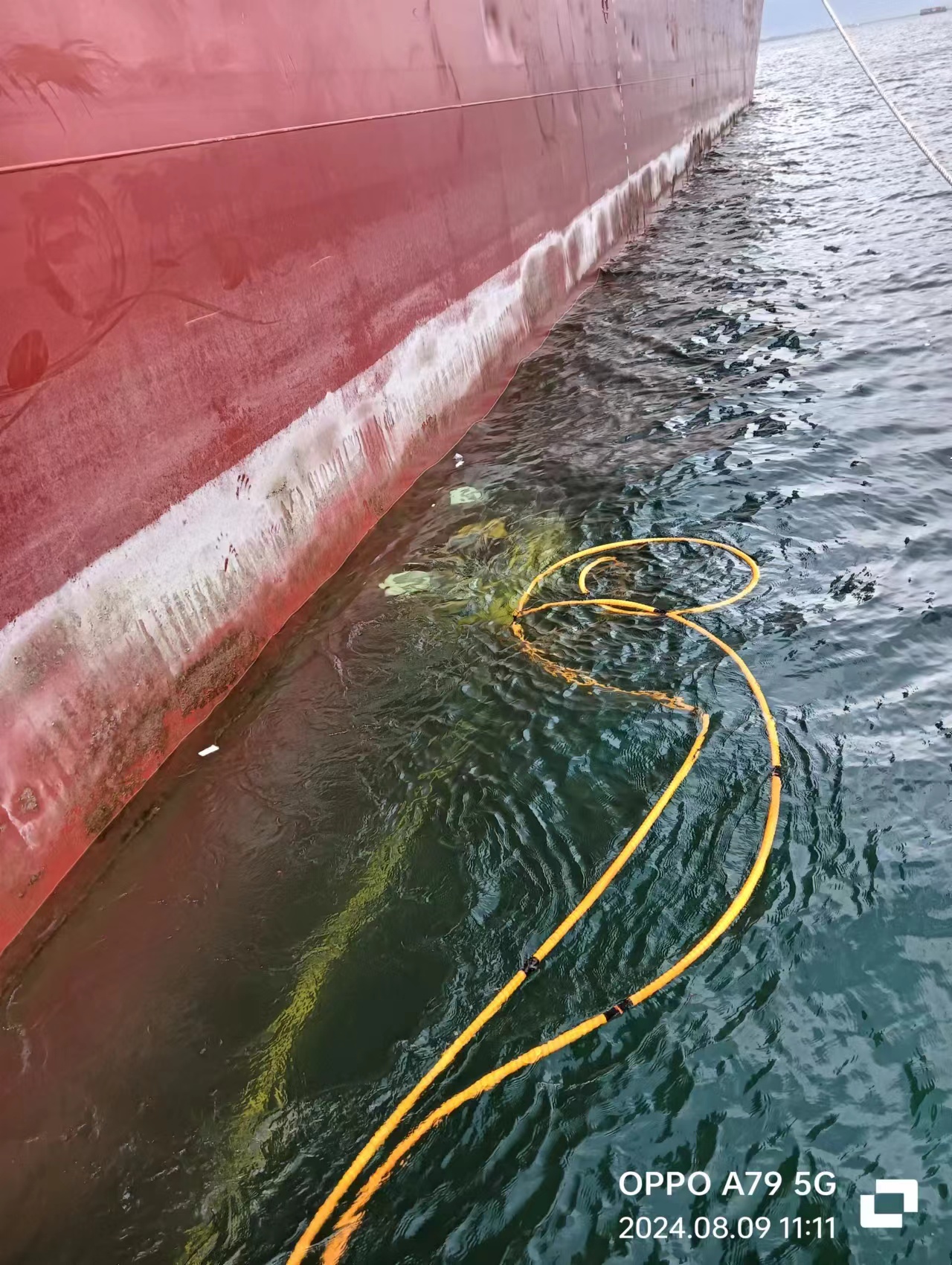

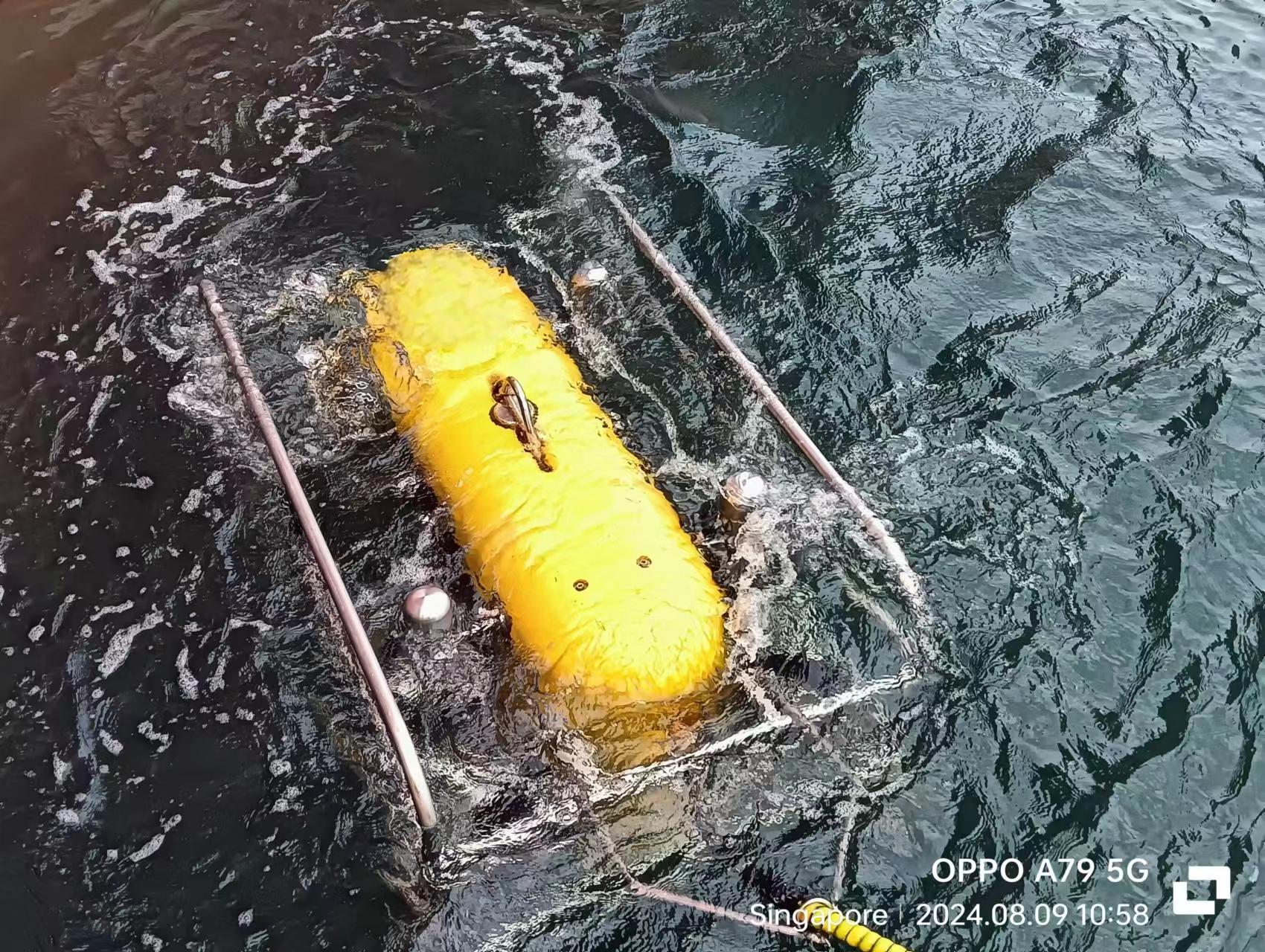

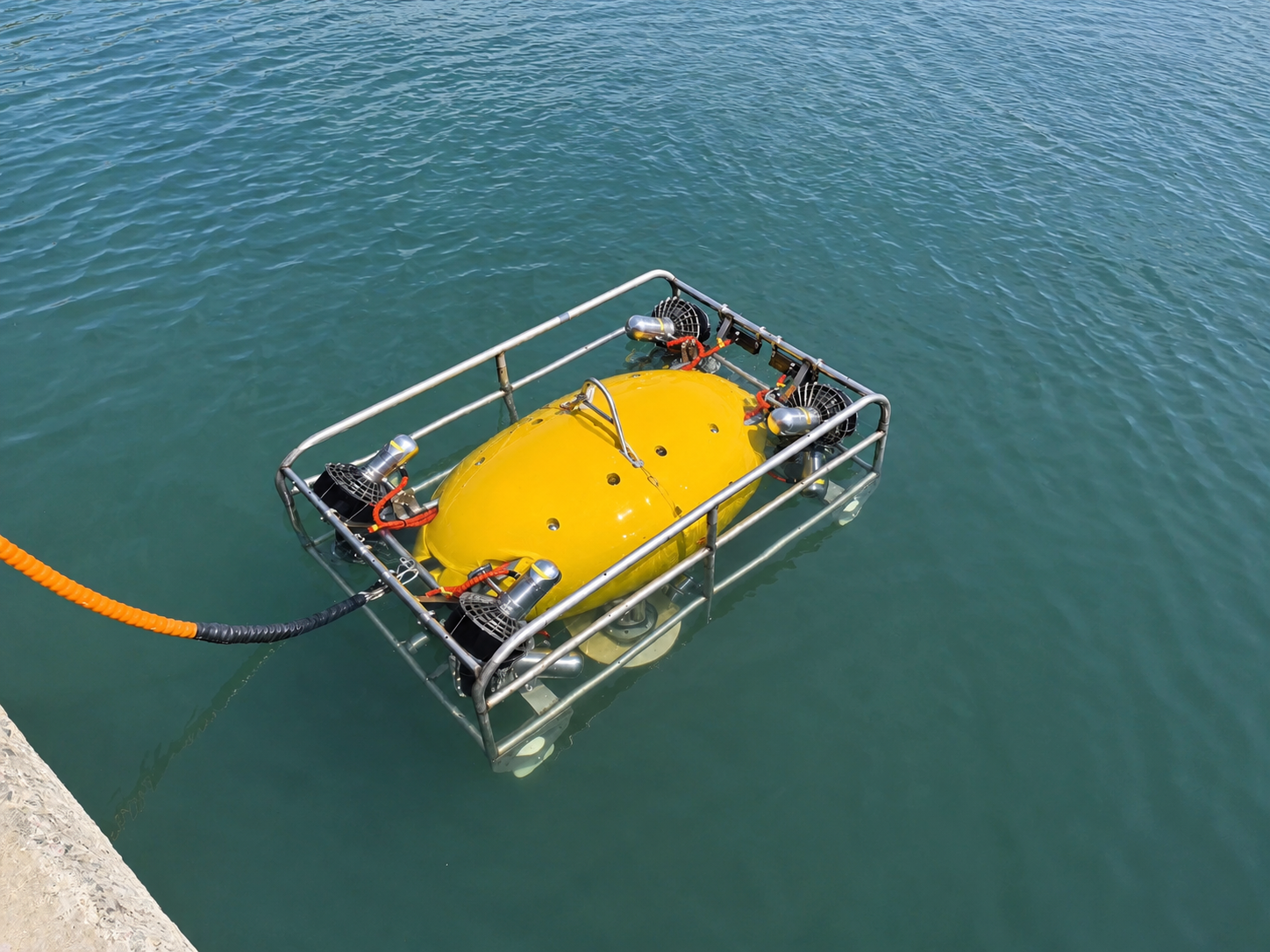

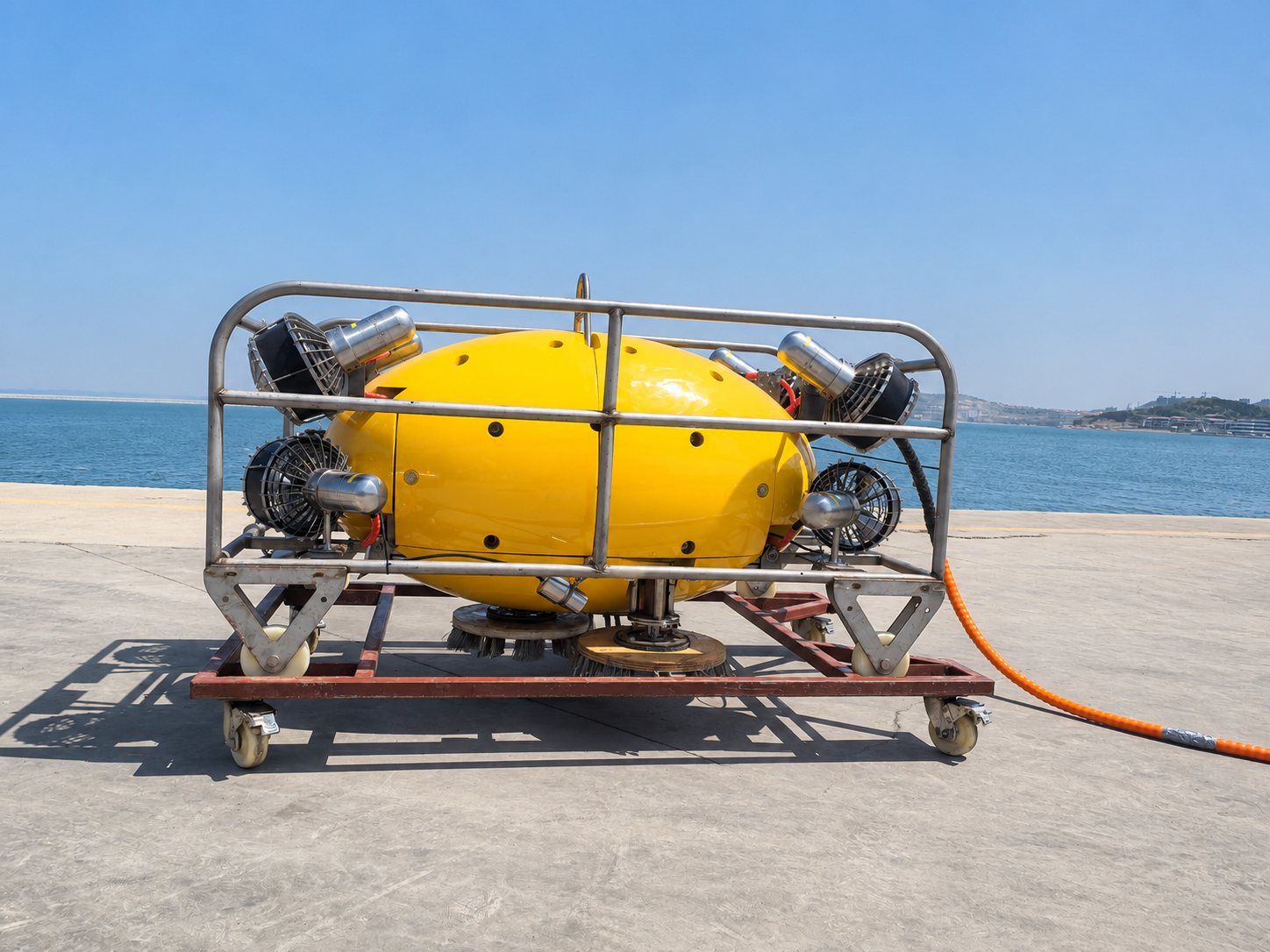

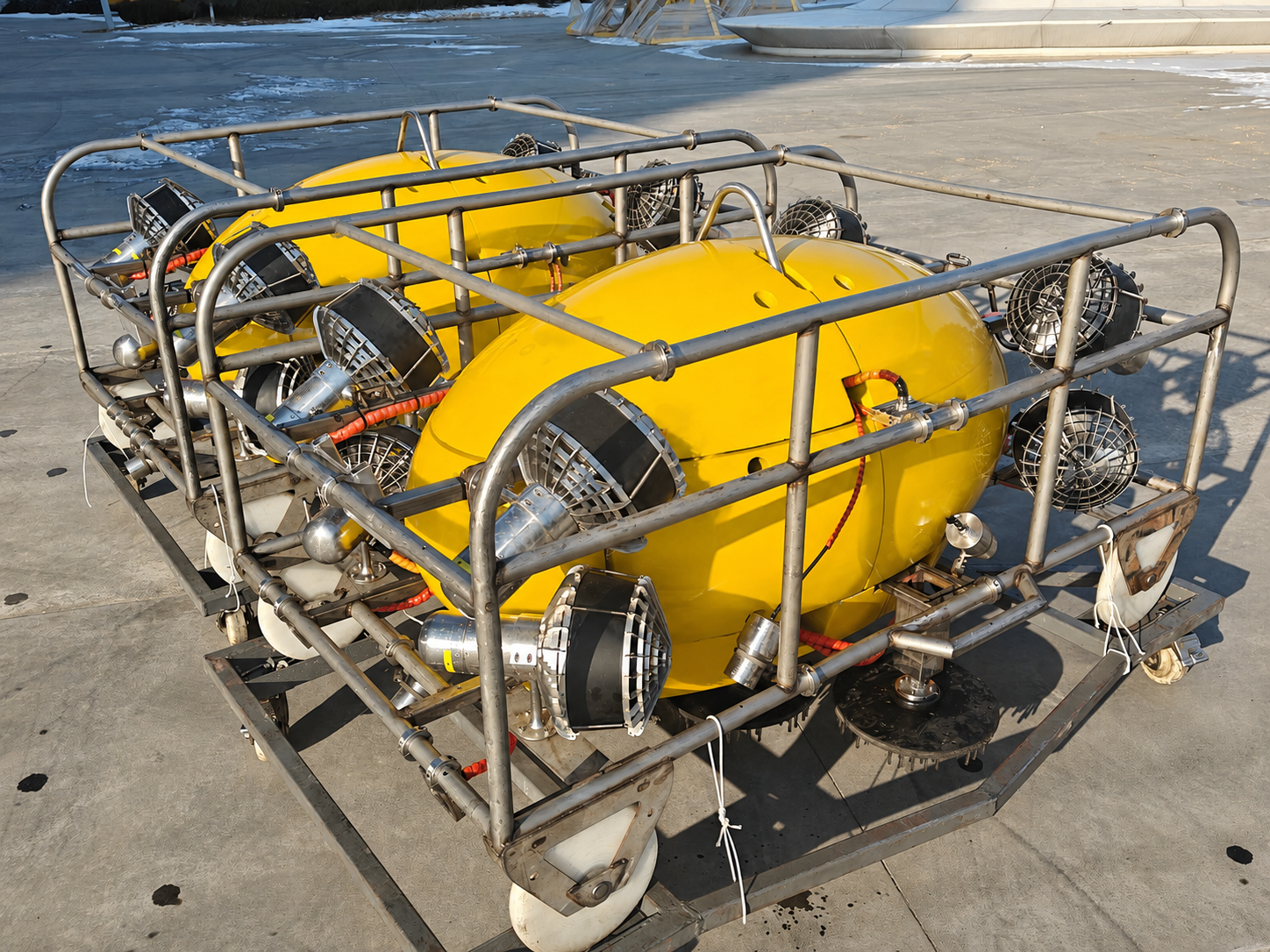

Working Picture:
